| RATING | UPTO 100A AT 11OV/230V/550V AC |
| TEMP CIASS | T6 |
| GAS GROUP | I AS PER IS/IEC 60079-1:2014. |
| M.O.C | CAST IRON CONSTRUCTION |
| DEG OF PROT | IP:65 AS PER IS/IEC 60529-2001 |
| CIMFR CERT NO | IN/CIMFR/TR21/4136 DTD. 22/02/2021 |
| PESO CERT. N0. | A/P/HQ/MH/401/6878 (P515008) DTD. 07/09/2021 |
| DGMS CERT NO | LETTER NO. 823/EHQ OF 01/12/2020 |
| BIS CERT NO | ENDORSEMENT NO. 132 DTD. 14/07/2021 |
| EARTHING | 1NO. INTERNAL & 2NOS. EXTERNAL |
| PAINT | EPOXY POWDER COATED LIGHT GREY SHADE (HAMMER TONE/STRUCTURE TYPE) |
| CABLE ENTRY | 04NOS. OF SIZE M20 WITH FLP DOUBLE COMPRESSION BRASS Ni.PLATED CABLE GLANDS. & PVC HOOD & WITH PLUG. |
| HARDWARE | S.S-304 (ONLY NUTS & BOLTS.) |

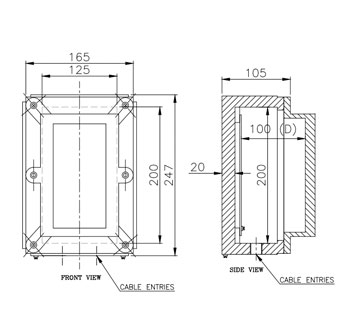

| INTERNAL DIMENSION | 200mm LENGTH x 1OOmm DEPTH x 120mm WIDTH (RECTANGULAR BOX) |
| NOTE | TERMINALS WILL BE IN THE MODULES. |
